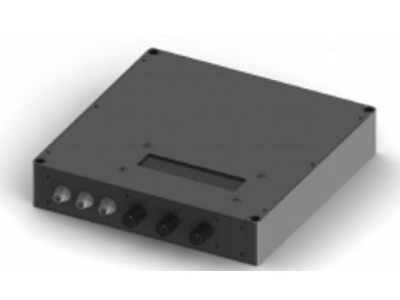

General Specifications

3dB S21 Bandwidth

32 GHz typ.

Saturated Output Power

>21.5 dBm typ.

RF Gain

30 dB max.

Gain Ripple

±0. 75 dB

Input, Output Impedance

50 Ω

Input Return Loss

10 dB min.

Output Return Loss

10 dB min.

Total Power Dissipation

2.5 W max.

Gain Adjustment Range

10 to 30 dB

Digital Application

Data Rate

> 40 Gb/s

Pulse Response

20%~80%, rise time 12 ps typ.

Output Amplitude

7.5 Vp-p max.

Input Range

1.5 V max.

Analog Applications

Useful Frequency Range

30 KHz to 38 GHz (-6 dB)

P1dB Output

> 21 dBm typ.

Group Delay (2 to 10 GHz)

± 25 ps

Noise Figure

6 dB typ.

Small Signal Gain

30 dB typ.

Mechanical Specifications

Operating Temperature

-20 °C to +60 °C

Storage Temperature

-45 °C to +90 °C

Operating Humidity

85%

Power Supply Requirements

+12 V DC, 0.2 A max.

Accessories Included

12 V DC power supply PS-12-M

RF Input/Output Connector

K Connector Female, AC Coupled

Dimensions

150 mm x 150 mm x 30 mm

Remote Control

USB port
