產品介紹：

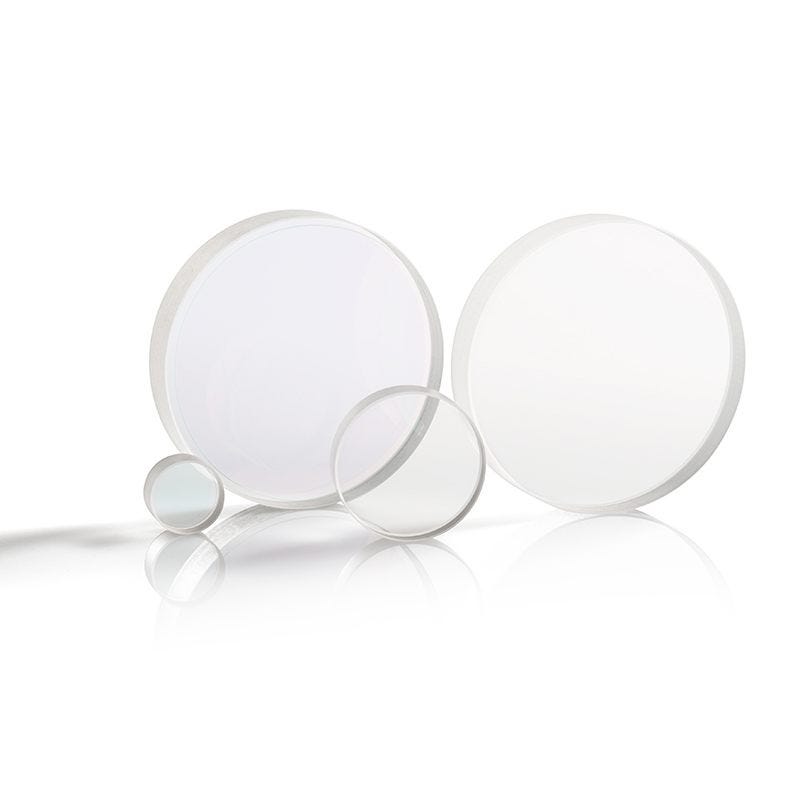

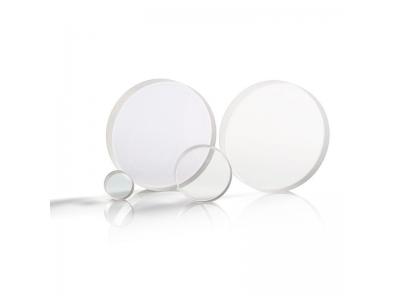

CVI反射鏡，是高質量的光學反射鏡選擇，廣泛應用于各類高功率及精密激光應用中。鏡片面型精度、鍍膜損傷閾值高，堅固耐用并為客戶提供最優像質。光學誤差RMS低于λ/50，表面粗糙度可達3-5?。
是目前國內高校、研究所及高功率/高性能光學實驗室的首選！
主要應用:
l 激光諧振腔鏡
l 光路偏轉
l 各類激光加工設備
產品參數：
類別 | 系列代碼 | 波長范圍nm | 反射率 | 直徑mm | 面型精度 | 表面質量 | 損傷閾值 |
窄帶部分反射鏡 | PR1 | 190-2100 | 30-90% | 12.7-50.8 | λ/10 | 10-5 | 20 J/cm2, 20ns, 20Hz at 1064nm, |
窄帶可調全反鏡 | TLM1 | 190-2100 | R ≥ 99.0% at 0° | 12.7-101.6 | λ/10 | 10-5 | 20 J/cm2, 20ns, 20Hz at 1064nm, |
光纖全反鏡 | FLM | 343, 515, 1030, 1064, | R ≥ 99.0% at 0° | 12.7-50.8 | λ/10 | 10-5 | 20 J/cm2, 20ns, 20Hz at 1064nm, |
準分子全反鏡 | ARF | 193 | R ≥ 97% at 0° | 25.4-76.2 | λ/10 | 10-5 | 1 J/cm2, 20ns pulse at 193nm |
KRF | 248 | R ≥ 99.5% at 0° | 25.4-76.2 | λ/10 | 10-5 | 3 J/cm2, 8ns pulse at 248nm | |
YAG全反鏡 | Y5 | 213 | R ≥ 97.0% at 0° | 12.7-50.8 | λ/10 | 10-5 | 3 J/cm2, 8ns pulse at 248nm |
Y4 | 262-266 | R ≥ 99.9% at 0° | 12.7-101.6 | λ/10 | 10-5 | 10 J/cm2, 20ns, 20Hz at 266nm | |
Y3 | 349-355 | R ≥ 99.9% at 0° | 12.7-101.6 | λ/10 | 10-5 | 15 J/cm2, 20ns, 20Hz at 355nm | |
Y2 | 523-532 | R ≥ 99.9% at 0° | 12.7-101.6 | λ/10 | 10-5 | 20 J/cm2, 20ns, 20Hz at 532nm | |
Y1 | 1047-1064 | R ≥ 99.9% at 0° | 12.7-101.6 | λ/10 | 10-5 | 25 J/cm2, 20ns, 20Hz at 1064nm | |
Y1S, Y2S, Y3S, Y4S | 266, 355, 532, 1064 | R ≥ 99.9% at 0° | 25.4 | λ/10 | 10-5 | 40 J/cm2, 20ns, 20Hz at 1064nm | |
雙波長反射鏡 | HM | 1064/532 | R ≥ 99% at 1064 and 532nm | 12.7-50.8 | λ/10 | 10-5 | 8 J/cm2, 20ns, 20Hz at 1064nm, |
YH | 1064/633 | R ≥ 99% at 1064nm | 25.4-50.8 | λ/10 | 10-5 | 8 J/cm2, 20ns pulse at 1064nm | |
寬帶反射鏡 | TLM2 | 450nm to 2100nm | R > 99.5% at 0° incidence | 12.7-25.4 | λ/10 | 10-5 | 500 mJ/cm2, 20ns, 20Hz at 1064nm |
MPQ | 245 – 390 (UV) | Ravg≥ 98% from 245 – 390nm at 0° - 45° | 25.0 | λ/4 | 60-40 | 0.5 J/cm2, 10ns at 532nm | |
鈦寶石超快反射鏡 | TLMB | 740 – 860 | R > 99.0% from 740 – 860nm | 25.0-101.6 | λ/10 | 40-20 | 8 J/cm2, 300 ps, 20Hz at 800nm |
金屬鍍膜反射鏡 | VUVA | 157 – 190 | R > 85% at 157nm by design | 25.4-50.8 | λ/10 | 40-20 | 低功率應用 |
DUVA | 193 – 1200 | R > 90% at 193nm | 12.7-50.8 | λ/10 | 40-20 | ||
PAUV | 250 – 600 | Ravg ≥ 85% (250 – 600nm) | 12.7-76.2 | λ/10 | 40-20 | ||
PAV | 400 – 800 | Ravg ≥ 87% (400 – 800nm) | 12.7-76.2 | λ/10 | 40-20 | ||
EAV | 450 – 650 | Ravg ≥ 92% (450 – 650nm) | 12.7-76.2 | λ/10 | 40-20 | ||
PS | 400 – 20,000 | Ravg ≥ 95% (400nm to 20 μm) | 12.7-76.2 | λ/10 | 40-20 | ||
PG | 650 – 20,000 | Ravg ≥ 95.5% (650 – 1700nm) | 12.7-76.2 | λ/10 | 40-20 |
注：如需詳細規格參數資料，或有其他要求，請聯系我們。
