產品介紹：

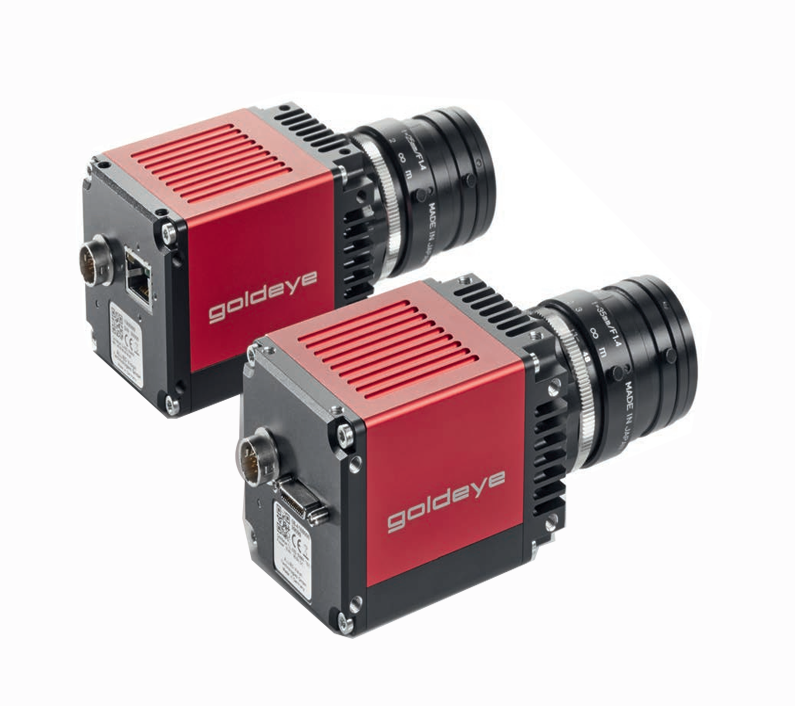

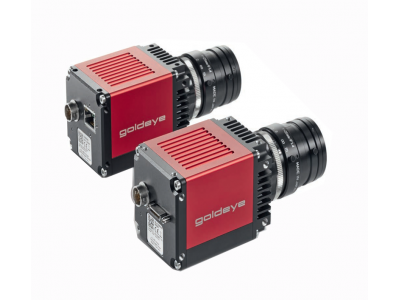

波威代理的德國AVT全線相機產品，CGOLDEYE-CL系列是最快的QVGA分辨率短波紅外（SWIR）相機，具有相機鏈路接口。幀速率高達344 fps的全分辨率，多用途的應用領域可以得到解決，并可以加快進程。為了使光譜范圍從900 nm到1700 nm的低噪聲成像，相機配備有氮氣填充的冷卻室。所有 Goldeye 相機都配備有主動熱電制冷 (TEC) 裝置，可降低噪聲，延長曝光時間并確保恒定的圖像質量，Goldeye 相機可以捕獲低噪聲圖像，是超出了可見光譜的工業和科學應用的理想選擇。標準化的相機鏈接接口與GEncP支持和綜合I/O控制選項簡化了與您的軟件解決方案的連接以及與其他系統組件的同步。
集成熱電傳感器冷卻和幾個機載圖像校正功能有助于GaldYe的出色的圖像質量。因優異的圖像質量，噪聲小，動態范圍高。它們非常適合于許多行業分支中的許多典型的SWIR應用：
· 回收工業：塑料分揀
· 半導體工業：太陽能電池和芯片檢測
· 醫學成像，科學：高光譜成像，顯微術，OCT
· 金屬和玻璃工業：熱物體的熱成像（250°C到800°C）
· 農業產業：航空遙感
· 印刷業：紙幣檢驗
· 電子工業：激光束分析
· 監視和安全：視覺增強（例如，通過霧或夜視）
效益與特色
.充氮冷卻室避免冷凝
.高達344fps的全分辨率
.GenCP支持的相機鏈接接口
.綜合I/O控制選項
.機載圖像自動校正
.TEC1sensor cooling
.延長工作溫度范圍
主要應用:
l 紅外成像
l 光伏檢測
l 硅晶圓檢測
產品參數：
型號 | GOLDEYE | GOLDEYE | GOLDEYE | GOLDEYE | GOLDEYE | GOLDEYE |
接口 | Camera Link Base | Camera Link Base | Camera Link Base | Camera Link Base | Camera Link Base | Camera Link Base |
分辨率 | 320 (H) × 256 (V) | 320 (H) × 256 (V) | 636 (H) × 508 (V) | 636 (H) × 508 (V) | 640 (H) × 512 (V) | 640 (H) × 512 (V) |
傳感器 | InGaAs FPA 320 × 256 | InGaAs FPA 320 × 256 | InGaAs FPA 636 × 508 | InGaAs FPA 636 × 508 | InGaAs FPA 640 × 512 | InGaAs FPA 640 × 512 |
傳感器類型 | InGaAs | InGaAs | InGaAs | InGaAs | InGaAs | InGaAs |
傳感器尺寸 | No standard size | No standard size | No standard size | No standard size | No standard size | No standard size |
像元尺寸 | 30 μm × 30 μm | 30 μm × 30 μm | 25 μm × 25 μm | 25 μm × 25 μm | 15 μm × 15 μm | 15 μm × 15 μm |
Lens mounts (available) | C-Mount, F-Mount, M42-Mount | C-Mount, F-Mount, M42-Mount | C-Mount, F-Mount, M42-Mount | C-Mount, F-Mount, M42-Mount | C-Mount, F-Mount, M42-Mount | C-Mount, F-Mount, M42-Mount |
最大滿幀幀率 | 344 fps | 344 fps | 100 fps | 100 fps | 301 fps | 301 fps |
ADC | 14 Bit | 14 Bit | 14 Bit | 14 Bit | 14 Bit | 14 Bit |
緩存(RAM) | 256 MByte | 256 MByte | 256 MByte | 256 MByte | ||
成像性能 | ||||||
暗噪聲 | 420 eˉ (Gain0), 170 eˉ (Gain1) | 420 eˉ (Gain0), 170 eˉ (Gain1) | 400 eˉ (Gain0), 170 eˉ (Gain1) | 400 eˉ (Gain0), 170 eˉ (Gain1) | 390 eˉ (Gain0), 53 eˉ (Gain1), 32 eˉ (Gain2) | 390 eˉ (Gain0), 53 eˉ (Gain1), 32 eˉ (Gain2) |
飽和電子數 | 2.5 Meˉ (Gain0), 170 keˉ (Gain1) | 2.5 Meˉ (Gain0), 170 keˉ (Gain1) | 1.9 Meˉ (Gain0), 39 keˉ (Gain1), | 1.9 Meˉ (Gain0), 39 keˉ (Gain1), | 1.2 Meˉ (Gain0), 84.8 keˉ (Gain1), 25 keˉ (Gain2) | 1.2 Meˉ (Gain0), 84.8 keˉ (Gain1), 25 keˉ (Gain2) |
動態范圍 | 75 dB (Gain0), 60 dB (Gain1) | 75 dB (Gain0), 60 dB (Gain1) | 73 dB (Gain0), 47 dB (Gain1), | 73 dB (Gain0), 47 dB (Gain1), | 69 dB (Gain0), 64 dB (Gain1), 59 dB (Gain2) | 69 dB (Gain0), 64 dB (Gain1), 59 dB (Gain2) |
輸出 | ||||||
Bit位數 | 8 - 14 Bit | 8 - 14 Bit | 8 - 14 Bit | 8 - 14 Bit | 8 - 14 Bit | 8 - 14 Bit |
黑白像素格式 | Mono8, Mono12, Mono12Packed, Mono14 | Tap Geometry 1X 1Y: Mono8, Mono12, Mono14; Tap Geometry 1X2 1Y: Mono8, Mono12 | Tap Geometry 1X 1Y: Mono8, Mono12, Mono14; Tap Geometry 1X2 1Y: Mono8, Mono12 | Mono8, Mono12, Mono12Packed, Mono14 | ||
通用輸入輸出口(GPIOs) | ||||||
TTL I/Os | LVTTL I/Os: 1 input, 1 output | LVTTL I/Os: 1 input, 1 output | LVTTL I/Os: 1 Input, 1 Output | LVTTL I/Os: 1 Input, 1 Output | LVTTL I/Os: 1 input, 1 output | LVTTL I/Os: 1 input, 1 output |
光耦 I/Os | 1 input, 2 outputs | 1 input, 2 outputs | 1 input, 2 outputs | 1 input, 2 outputs | 1 input, 2 outputs | 1 input, 2 outputs |
RS232 | 115 200 Baud, 8N1 (adjustable) | 115 200 Baud, 8N1 (adjustable) | 115 200 Baud, 8N1 (adjustable) | 115 200 Baud, 8N1 (adjustable) | 115 200 Baud, 8N1 (adjustable) | 115 200 Baud, 8N1 (adjustable) |
工作條件/尺寸 | ||||||
工作溫度 | 負20 °C to +55 °C (case) | 負20 °C to +55 °C (case) | 負20 °C to +55 °C (case) | 負20 °C to +55 °C (case) | 負20 °C to +55 °C (case) | 負20 °C to +55 °C (case) |
電源要求 (DC) | 10.8 V to 30.0 V | 10.8 V to 30.0 V | 10.8 V to 30.0 V | 10.8 V to 30.0 V | 10.8 V to 30.0 V | 10.8 V to 30.0 V |
功耗 | 10.5 W (at 12 VDC) | 10.5 W (at 12 VDC) | 19 W (at 12 VDC) | 10 W at 12 VDC | 11.8 W at 12 VDC | 6.0 W (at 12 VDC) |
重量 | 760 g (with C-Mount adapter) | 320 g (with C-Mount adapter) | 780 g (with C-Mount adapter) | 340 g (with C-Mount adapter) | 350 g (with C-Mount adapter) | 320 g (with C-Mount adapter) |
尺寸(L × W × H in mm) | 90 × 80 × 80 | 78 × 55 × 55 | 90 × 80 × 80 | 78 × 55 × 55 | 78 × 55 × 55 | 78 × 55 × 55 |
符合規范 | CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B | CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B | CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B | CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B | CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B | CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B |
